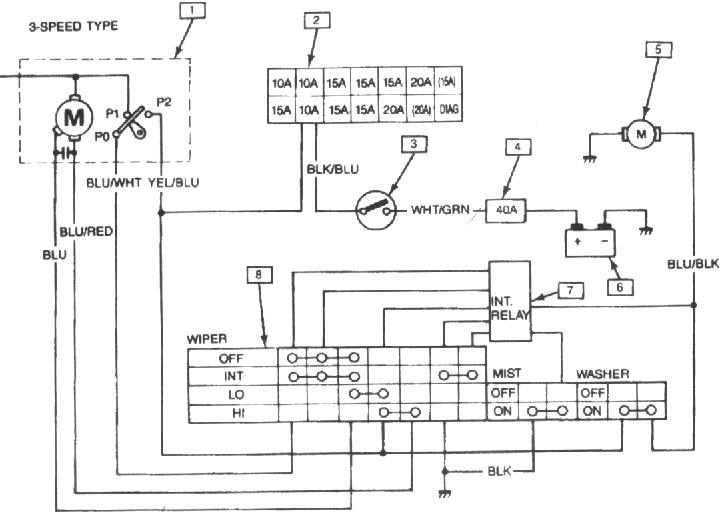

| 1. Wiper Motor | 5. Washer Motor |
| 2. Fuse Box | 6. Battery |
| 3. Main Switch | 7. Intermittent Relay (Equipped Models) |
| 4. Main Fuse | 8. Wiper, Mist, & Washer Switch |
The wire going off to the left at the MOTOR (#1) area is to Ground.
The Two Speed type is the same, without the Intermittent Relay.
